NC P1.86
Art.nr. NC P1.86

NC P1.86

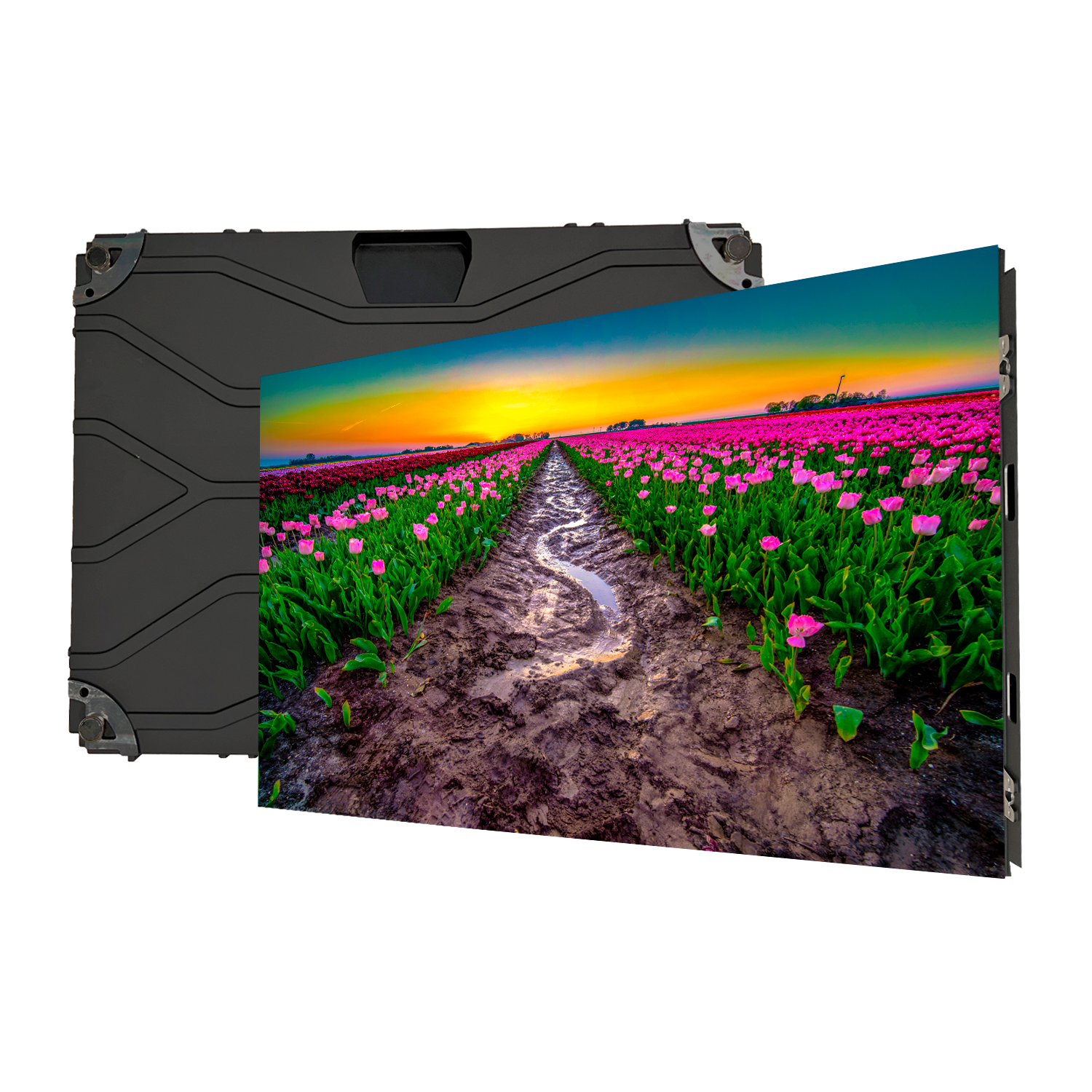

Enter the world of stunning visual experiences with our PLD LED display P1.86 Cabinet. With a resolution of 344x258 pixels on a compact 640x480mm cabinet, this is one of the most popular video walls for indoor use. The display delivers crystal-clear images that excite the senses.
With 344x258 pixels, this display offers extraordinary precision, bringing even the smallest details to life. The LED display is perfectly suited both indoor applications, making your content stand out even in brightly lit environments.

But it's not just about image quality; our PLD LED display P1.86 Cabinet is also designed for smooth performance. With a refresh rate of 3840Hz, it offers smooth, real-time images even during fast movements.

Give your audience an immersive experience and make your message stand out with the PLD LED Display P1.86 Cabinet - where technology and creativity come together for an unforgettable impact.

Quality, reliability, longevity and serviceability are key for us.
All our PLD LED displays are modular and equipped with the highest quality AA components available on the market. With high-quality Meanwell power supplies combined with the industry-leading NovaStar control system, our displays offer unmatched reliability, brightness and performance.

Offerte aanvraag
Art.nr.:NC P1.86
DescriptionP1.86 Cabinet 640×480, 344×258 pixels, 600CD/m2, 3840Hz
Physical Parameter
TypeIndoor
Pixel Pitch1,86 mm
Pixel Density288906 dots/m2
LED TypeSMD1515
Module Size320×160 mm
Module Resolution172×86 pixel
Cabinet Size640x480x60 mm (WXHXD)
Cabinet Weight7.5 kg/pcs
Optoelectronic Parameter
Brightness≈600 cd/m2
Viewing Angle140/140 H/V°
Minimum Viewing Distance1,53 m
Gray Scale14 bits
Power Consumption450/150 Max./Avg. W/m²
Work VoltageAC100-240V
Refresh Rate≥3840 Hz
Brightness Adjustment0-100%
Color Temperature5000-9300K Adjustable
Application Parameter
Operation SystemWindows 10/11
Control Distance<100 m (Cable); ≥100 m (Optical fiber transmission)
Storage Temperature-40~ +85 °C
Operating Temperature-20~ +60 °C
Operating Humidity10-90% RH
Life Span100000 Hours
IP RatingIP30/IP30 Front/Rear
MaintenanceFront
InstallationFixed
